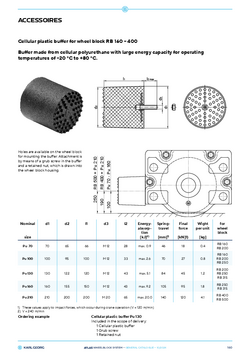

| D2 | Nominal size (mm) | ⌀ d1* (mm) | L1 | D3Alternative | L2 | Energy absorbtion (kJ²) | Spring Travel (mm) | End force (kN) | Unit weight (kg) |
For wheel block
|
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65 | Pu 70 | 70 | 66 | M 12 | 28 | 1 | 46 | 18 | 0.4 |
|
|||
| 95 | Pu 100 | 100 | 100 | M 12 | 33 | 3 | 70 | 27 | 0.8 |
|
|||
| 122 | Pu 130 | 130 | 120 | M 12 | 43 | 5 | 84 | 45 | 1.2 |
|
|||
| 155 | Pu 160 | 160 | 150 | M 12 | 43 | 9 | 105 | 95 | 1.8 |
|
|||
| 200 | Pu 210 | 210 | 200 | M 20 | 65 | 20 | 140 | 120 | 4.1 |
|
Karl Georg‘s decades of experience offer a wide range of specific product solutions for special applications, conditions and interfaces. Thanks to flexible manufacturing concepts and a high level of vertical integration, we are able to offer special solutions from a quantity of 1. Our experts will be happy to help you.
