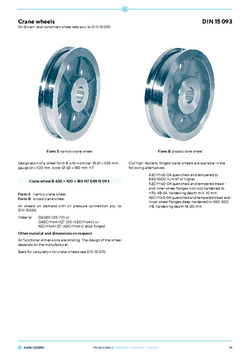

DIN 15093

Form ⌀ d1 (in mm) b1 (in mm) b2 (in mm) d3 (in mm)
S 315 45 - 55 90 70 - 110
B 55 - 65 110 80 - 110
S 400 55 - 65 110 80 - 120
B 70 - 90 140 90 - 130
S 500 55 - 65 110 90 - 130
B 70 - 90 140 100 - 140
S 630 65 - 75 120 100 - 160
B 80 - 110 160 120 - 180
S 710 75 - 90 140 120 - 170
B 95 - 160 210 140 - 190
S 800 75 - 90 140 140 - 180
B 95 - 160 210 160 - 200
S 900 75 - 90 140 140 - 190
B 95 - 160 210 180 - 230
S 1000 75 - 90 140 160 - 200
B 95 - 160 210 200 - 250

–30 °C up to +200 °C

High availability

Easy installation

DOWNLOADS
We are happy to support you with your project specifications.

Karl Georg‘s decades of experience offer a wide range of specific product solutions for special applications, conditions and interfaces. Thanks to flexible manufacturing concepts and a high level of vertical integration, we are able to offer special solutions from a quantity of 1. Our experts will be happy to help you.

Request
We manufacture with solar energy from our own production.

With a total output of around 850 kWp, we not only generate enough energy for our fleet of electric vehicles, but also significantly reduce the CO2 emissions of our production.
